Star Wars: Dark Forces

We will continue our trend of featuring a disproportionate amount of LucasArts games in our guide. The game we’ll tackle next is the Star Wars: Dark Forces demo from 1995, an example of the first-person shooter (FPS) genre, featuring fast software-rendered 3D graphics.

Installing the game

As per our usual routine, we’ll create a new folder in DOS Games called Dark Forces, and the drives/c subfolder in it. The game demo comes in three ZIP archives, dforces1.zip, dforces2.zip, and dforces3.zip; we’ll need to copy their contents to our virtual C drive. Make sure to download the manual as well.

There’s a README.TXT included with the demo, it’s recommended to read at least the installation and the keyboard shortcuts sections (use more README.TXT). The instructions tell us exactly what we need to do (this is why you should always check out the included text files):

I) INSTRUCTIONS FOR INSTALLING AND RUNNING DARK FORCES DEMO:

1. Create a directory for the demo on your hard drive.
   (ex. C:\DFDEMO)

2. Extract the demo using PKUNZIP.EXE into the demo
   directory.  If you have downloaded one or both of
   the cutscene files, then unzip them as well.

3. From the demo directory, type "demo" and  RETURN. This will
   bring you to the install menu. From the install menu, follow
   the on-screen instructions. Press "I" to install. This will
   take you through through the sound card setup program. When
   the install is finished it will bring you to the options
   menu. From there you type "1" to run Dark Forces. In the
   future, in order to get to the options menu, you should
   type "demo" from the your demo directory.

We actually don’t need that DFDEMO folder, and we’ve already extracted the contents of the three ZIP archives to our root directory on drive C, so just follow the instructions in step 3. Choose the Express Setup option in the sound configuration utility by pressing E, and the rest should be straightforward. The setup program will detect the Sound Blaster 16 correctly and will even play some test sounds.

After the setup has been completed, start the game by running demo again and then pressing the 1 key.

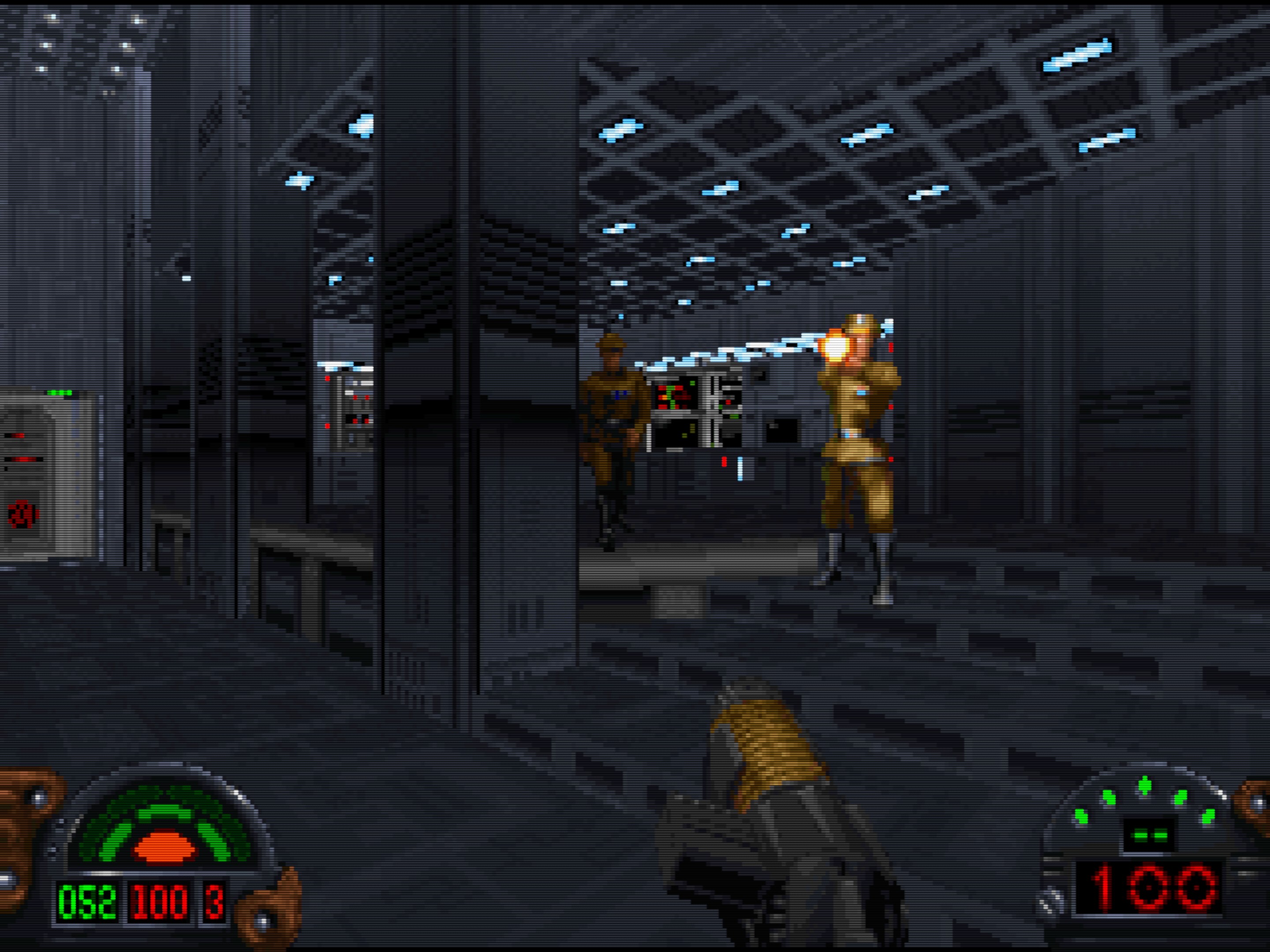

Star Wars: Dark Forces -- Opening scene

Star Wars: Dark Forces — Opening scene

Autotype

Having to press the 1 key every time we start the game is not the end of the world, but it’s not great either. Luckily, there’s a way to automate that; the handy autotype DOSBox Staging command can simulate keypresses as implied by its name. This is what we need to put into our [autoexec] section to start the game without manual intervention:

[autoexec]
c:
autotype -w 0.5 1
demo
exit

The first -w 0.5 argument of the autotype command specifies an initial half-second wait time before the “auto-typing” begins. This is followed by the 1 argument which will simulate pressing the 1 key.

That’s it! It’s a simple but very useful feature. Run autotype /? to see the full list of available options and check out the list of AUTOTYPE candidates on our wiki for assorted real-life examples.

Display refresh rate

Dark Forces uses the 320×200 256-colour VGA screen mode, just like the majority of DOS games from the 1990s. This mode uses a fixed 70 Hz screen refresh rate, so if your emulated CPU is fast enough, you can get 70 FPS out of the game.

But there’s a problem: most modern non-variable refresh rate flat screens work at a fixed 60 Hz rate. Luckily, DOSBox Staging intelligently times and drops frames if there’s a mismatch between the refresh rate of the emulated graphics card and the actual refresh rate of your physical monitor. In most cases, this works fine out of the box without you needing to configure anything.

However, even though DOSBox Staging is trying to do its best in such situations, refresh rates will always result in some visible unevenness of motion. This is especially noticeable in games that feature smooth scrolling (e.g., shoot’em up games, platformers, and pinball games), and in fast-paced 3D games, such as Dark Forces.

To achieve smoother motion, we have two options:

  • Using a variable-refresh rate (VRR) monitor — Nvidia G-Sync, AMD FreeSync, VESA AdaptiveSync, and Apple ProMotion certified displays all fall into this category. Any monitor that can continuously vary the refresh rate from about 59 to 71 Hz should do the job. DOSBox Staging automatically takes advantage of such displays by default.

  • Using specific fixed refresh rates on non-VRR monitors — Even if you’re not a lucky owner of a VRR display, your monitor might support a fixed 70 Hz refresh rate if you create a custom screen mode for it. This is highly monitor-dependent, but there’s no harm in trying it out.

Note, however, that depending on the type of game, the 60/70 Hz mismatch might not matter much or at all. For instance, most adventure, strategy, and role-playing games rarely have fast-paced graphics; they generally only update the screen in the low 5-20 FPS range. Running the monitor at 70 Hz results in very little noticeable improvement with these games.

Another important consideration is that most pre-VGA games don’t feature smooth movement in their graphics, so the general unevenness of motion masks the slight judder resulting from the 60/70 Hz mismatch.

For reference, these are the refresh rates of the graphics standards emulated by DOSBox Staging:

Graphics standard Refresh rate
SVGA and VESA 70 Hz or higher — 640×480 or higher extended and VESA modes
VGA 60 Hz — 640×480 standard mode only
70 Hz — all other standard modes
CGA, PCjr, Tandy, EGA 60 Hz
Hercules 50 Hz

Creating custom 60 and 70 Hz screen modes

“Custom resolution” is a bit of a misnomer because what we’re after is creating a new screen mode that uses your monitor’s native resolution, but with a custom refresh rate.

You can create such custom resolutions using the Nvidia Control Panel or with the Custom Resolution Utility (CRU) on Windows. You’ll probably need to enable CVT reduced blanking (CVT-RB or CVT-RBv2) to go up to 70 Hz. For the best results, it’s recommended to use the exact fractional 59.713 Hz and 70.086 Hz refresh rates for the nominal “60 Hz” and “70 Hz” DOS rates, respectively.

The drawback of this approach is that you need to set the appropriate custom resolution before starting DOSBox Staging, and if a game switches between different refresh rates, well, you’re out of luck—these games can only work 100% correctly either on a true VRR display or a real old-school CRT monitor. However, most games only use a single fixed refresh rate, which is usually the standard 70 Hz VGA rate, so this technique still has a lot of practical utility.

Vertical syncing

Dark Forces synchronises its screen updates to the refresh rate of the emulated VGA card, which is always 70 Hz. This is hardcoded behaviour that cannot be disabled in the game’s configuration.

DOSBox Staging tries to automatically detect the conditions where enabling vertical syncing is beneficial to synchronise updating the emulated image to the vertical refresh rate of your physical monitor. Without DOSBox-level vsync, fast-paced games such as this one would exhibit a lot of tearing. This is important to understand: to get zero tearing, vertical syncing must be happening both in the game and at the DOSBox level!

Conversely, DOSBox-level vsync only means that the emulated image is output to your physical monitor without flickering and tearing; the emulated DOS game itself might or might not use vertical syncing, and thus might or might not produce tearing artifacts of its own (these artifacts are present when running the game on real hardware too, so there’s nothing we can do about them at the emulator level).

You don’t have control over the vertical syncing behaviour in most DOS games. For example, Commander Keen 4–6, Doom, and many other FPS games have hardcoded vsync with a fixed 35 FPS cap. These games were programmed with fixed refresh rates in mind from the ground up; trying to disable the vsync or altering the FPS cap would completely break them (but the good news is you can’t do that anyway).

To recap, the following variations are possible when it comes to vsync:

Game uses vsync? DOSBox-level vsync enabled? Result
yes yes no tearing
no yes some tearing also present on real hardware
yes no bad tearing (in fast-paced games)
no no very bad double-tearing (in fast-paced games)

As you can see, even with DOSBox-level vsync enabled, you might still get tearing in some games, but that’s just how the games were coded. We can’t “fix” that at the emulator level, that would require making changes to the games’ code. Many pre-rendered cutscenes and FMV games tear really badly on real hardware too on CRTs—that’s the “authentic DOS experience” for you! 😎

Manually configuring vsync is a complex advanced topic for power users only, so it’s beyond the scope of this beginner’s guide. If you’re feeling brave, look into the presentation_mode, vsync, vsync_skip, host_rate, and dos_rate settings for further details, but it’s unlikely you’ll be able to improve the automatically chosen settings unless you really know what you’re doing (and it’s really easy to make the situation a lot worse by misconfiguring things).

Setting the emulated CPU speed

Hardware-accelerated 3D graphics only became widespread in the second half of the 1990s after the end of the DOS era, so most DOS games only use software rendering. Dark Forces is no exception, which means your emulated CPU needs to be fast enough to reach the 70 FPS maximum the game supports.

The game prints out the familiar message of the DOS/4GW DOS extender at startup, which means this is a protected mode game:

DOS/4GW Protected Mode Run-Time  Version 1.95
Copyright (c) Rational Systems, Inc. 1990-1993

As we’ve learnt, protected mode games default to using all available CPU power. While this will most likely help achieve a stable 70 FPS (if your computer is powerful enough), running the CPU at maximum speed could starve the audio emulation, leading to audible glitches, clicks, and pops.

To avoid such issues, it’s much preferable to emulate a CPU that is just powerful enough to handle 70 FPS but not more powerful. One way to come up with a good cycles number is to start the game with a relatively low cycles setting, say 10 000, then keep increasing it with the Ctrl+F12 shortcut (Cmd+F12 on the Mac) while playing to arrive at the lowest value that results in adequate performance. As a reminder, you can decrease the current cycles value too with the Ctrl+F11 (Cmd+F11) shortcut.

So let’s add the following to our config:

[cpu]
cycles = 10000

Start the game and hold the Left or Right key to keep turning around, then increase the cycles value until the motion becomes smooth (again, unless you’re using a VRR monitor or a fixed 70 Hz refresh rate, it will never become completely smooth). Somewhere around 50 000 cycles seems to do the trick, which roughly corresponds to a Pentium 90 based on our table of common CPU speeds.

So we’ll go with that setting. You might need to increase this if later levels are more demanding on the CPU, but this is a good starting point:

[cpu]
cycles = 50000

Running out of steam

As you keep increasing the fixed cycles value, the audio will start breaking up, and the motion will become very stuttery after a certain point. This means you’re trying to emulate a faster CPU than your computer can handle. If you’re on a less powerful machine, this unfortunately can happen before reaching the minimum cycles value necessary for achieving a smooth and stable 70 FPS rate.

You have only two options in that situation: live with a lower cycles setting that results in less than 70 FPS, or buy a more powerful computer with a faster processor that can handle higher cycles values.

Also, make sure you’re not running any other CPU-intensive programs at the same time in the background. Virus scanners, backup software, copying large files to USB storage, heavy network traffic, and even ordinary web browsers with many tabs open can chew up a significant chunk of your total CPU power. Certain popular chat programs can be very demanding on the CPU too, and, surprisingly, even innocent-looking stuff such as automatic wallpaper switchers can have negative effects on the performance of DOSBox.

As a general rule, it’s best to close all other programs if you’re encountering performance issues with DOSBox and try again. Just apply common sense and treat DOSBox as any other performance-intensive modern game. This might seem counterintuitive as we’re running decades-old software here, but emulation can be very demanding on your computer.

Setting up General MIDI sound

Our previous example game, Beneath A Steel Sky, supports the Roland MT-32 MIDI sound module to provide more realistic-sounding music than what the Sound Blaster’s OPL synthesiser is capable of. Dark Forces, however, was composed for a newer family of MIDI sound modules that support the so-called General MIDI standard.

DOSBox Staging comes with an integrated General MIDI compliant synthesiser called FluidSynth. Unlike the MT-32 emulation, FluidSynth does not attempt to mimic any specific hardware device but a very generic MIDI sound module. This sound module doesn’t have any built-in sounds—you need to load so-called SoundFont files (.sf2 extension) into FluidSynth to get any sound out of it; these contain the instrument definitions and the sound data.

You can read more about the history of MIDI in DOS gaming at the end of this section, but the short practical summary is as follows:

  • The Roland Sound Canvas SC-55 was the de-facto standard General MIDI sound module until the very end of the DOS years (around 1997).

  • DOSBox Staging does not emulate the SC-55 directly, but there are SoundFonts you can load into FluidSynth that approximate the sound of the SC-55.

One extra detail is that Roland went a bit beyond the General MIDI standard in their Sound Canvas series; these modules actually support the GS standard, which is basically General MIDI plus some Roland-specific enhancements. Many games use these extra features, and while General MIDI compatible SoundFonts will work with them, for the best results it’s recommended to use GS standard compatible ones.

One such SoundFont is GeneralUser GS. Download the latest version, then copy the SoundFont file with the .sf2 extension into its designated folder:

Windows C:\Users\%USERNAME%\AppData\Local\DOSBox\soundfonts\
macOS ~/Library/Preferences/DOSBox/soundfonts/
Linux ~/.config/dosbox/soundfonts

The next step is to configure DOSBox Staging to use this SoundFont for General MIDI playback. The name of the SoundFont might be slightly different if a new version has been released since the writing of this guide; make sure you use the correct filename for the soundfont setting.

[midi]
mididevice = fluidsynth

[fluidsynth]
soundfont = "GeneralUser GS v1.471.sf2"

The only thing left to do is to reconfigure the game to use General MIDI for music:

  • Comment out the autotype command in the [autoexec] section and restart DOSBox.

  • Press 3 in the startup menu to reconfigure the sound settings, then C to do a custom setup.

  • Enter the Advanced Menu (it’s above Quit at the bottom).

  • Select the General MIDI device for Music, and select the default 330 value for the Port setting.

  • The Digital Sound settings don’t need changing as our Sound Blaster 16 has been auto-detected correctly.

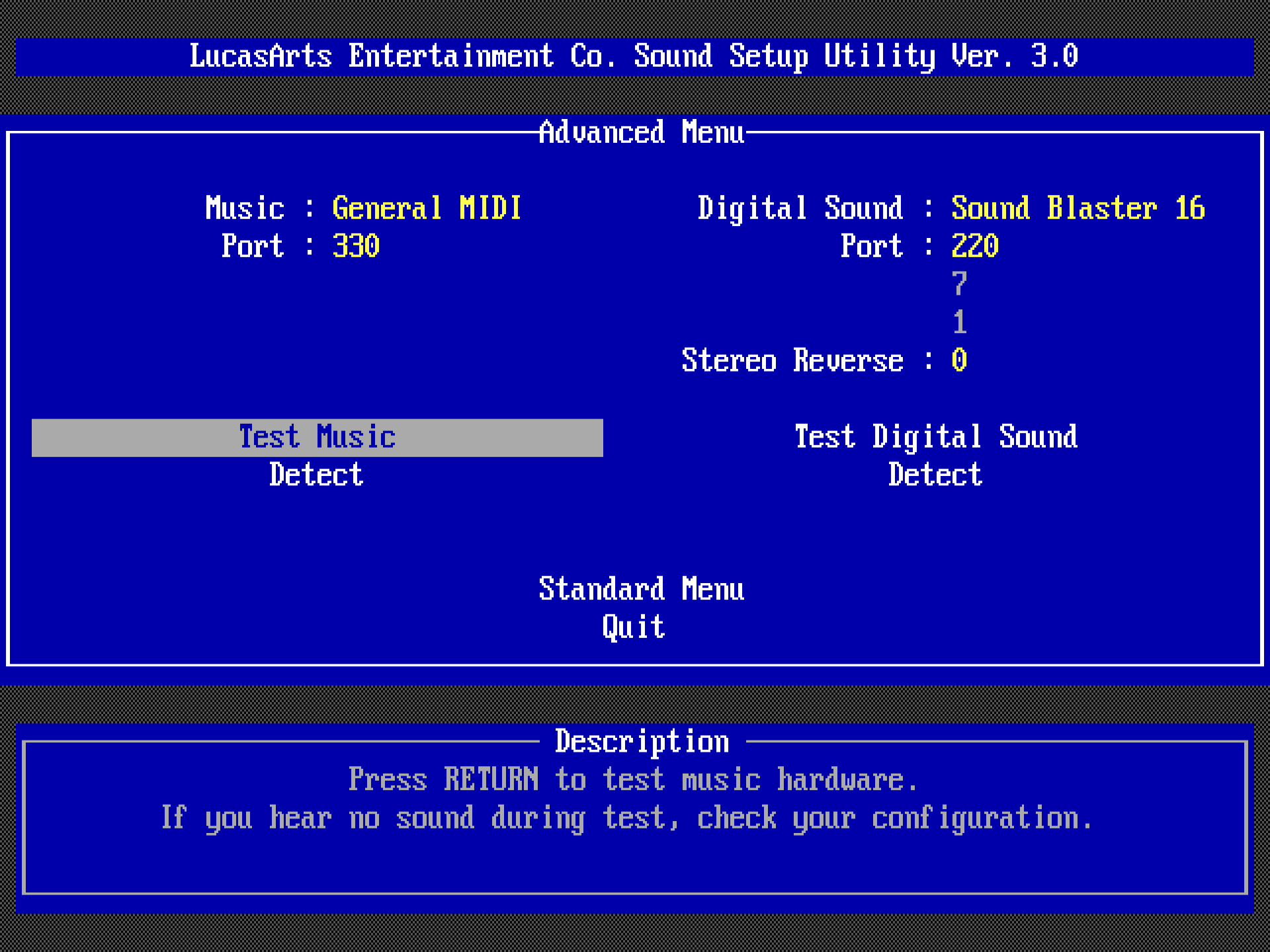

The final configuration should look like this:

Star Wars: Dark Forces setup --- Advanced sound settings

Press Enter on the Test Music menu item and you should hear the start of the Imperial March playing with much more realistic instruments!

How to drive a manual

Note that if you try to use Detect in the Music section, the auto-detection will fail and the Music option will revert to None. This can happen with some setup utilities, therefore it’s important to know that the port of the General MIDI device must be set to 330, should the auto-detection fail. This is sometimes called the MPU-401 port, MPU port, or just MIDI port.

Similarly, most games can auto-detect the Sound Blaster settings, but sometimes you need to enter them manually. The default DOSBox settings are port (I/O address) 220, IRQ (interrupt) 7, and DMA channel 1.

It’s worth watching the whole intro at this point to appreciate how much more realistic the General MIDI rendition of this orchestral piece sounds compared to the OPL synth.

Of course, you can always try other GM or GS compatible SoundFonts too—that’s the beauty of General MIDI! FluidR3_GM_GS and Creative Labs 4M GM_4gmgsmt are good candidates as they sound fairly close to the SC-55 sound set. The list of recommended SoundFonts on our wiki should also give you some further pointers on which SoundFonts are worth trying and where to find them.

Note that while some SoundFonts, such as GeneralUser GS, give you overall good results in most games, other SoundFonts might excel in a handful of titles and sound terrible in others. To give you an idea, here’s how the intro music sounds on the original Roland SC-55 hardware versus a few different SoundFonts. As mentioned, GeneralUser GS and Creative 4GMGSMT are the closest in terms of overall balance and character, the rest are rather hit-and-miss. My advice: just pick one that gives you good overall results and stick with it. It’s best to do this in your primary config, then you never need to think about it again.

Further comparison recordings can be found on our wiki.

Roland SC-55 v1.21 (hardware)
GeneralUser GS
Creative 4GMGSMT
FluidR3_GM_GS
FatBoy
Arachno

Turn it down, please!

Some SoundFonts are way too loud; if you encounter such a SoundFont, you’ll most likely want to lower its output level. The best way to do so is by including an additional percentage volume value after the SoundFont’s name in the config, e.g.:

[fluidsynth]
soundfont = Arachno.sf2 40

This will scale back the volume to 40%. A few SoundFonts are extremely loud—you need to turn the volume down to 10-20% to get usable levels. It’s a mystery what the authors were thinking…

Roland MT-32 is not General MIDI

Do not confuse the Roland MT-32 family of MIDI sound modules with General MIDI modules! Music composed for the MT-32 often sounds utterly wrong on a General MIDI device, and vice versa. Yes, they both have “MIDI” in their names, but that only refers to the communication protocol. The MT-32 range of devices are programmable synthesisers and most MT-32 supporting games take advantage of that to create custom sounds. In contrast, General MIDI modules are generally weaker in the synthesis front but feature more realistic-sounding real-world instruments. The soundtrack of Dark Forces showcases this very well—you can’t get such realistic orchestral music out of an MT-32.

Whenever you configure a game for MIDI sound, you should consult the List of MT-32-compatible computer games first. This contains the hard-earned knowledge of many decades of research and tells you which MIDI module to use for a particular game. The original game manuals very rarely give you this info, and even if they do, the information is often wrong. So you absolutely need this list.

Quite confusingly, there’s a large list of games that claim MT-32 compatibility but only sound correct on a General MIDI module. Make sure to check the List of games that falsely claim MT-32 compatibility as well before configuring any game for MT-32 sound.

A brief history of MIDI in DOS gaming

The iconic Roland MT-32 released in 1987 was the first sound module that made realistic-sounding music in DOS games a possibility. In 1991, Roland released its successor, the iconic Roland Sound Canvas SC-55.

The SC-55 shaped DOS gaming history in significant ways: it was the world’s first device to support the General MIDI standard. MIDI only defines a communication mechanism between MIDI-capable devices (e.g., a sound module and your computer). But it remains silent on how the different instruments should sound. General MIDI (GM) remedied this with its 128 standard instrument definitions. For example, on any GM-compliant module, instrument #1 is always the Acoustic Grand Piano and instrument #36 is the Fretless Bass.

This made interoperation between GM-compliant devices possible. You could use any General MIDI sound module with any GM-compliant game, and you would get music. The music would sound mostly correct, but this depends on the musical composition and the particular sound module. Most composers and gamers had the SC-55, establishing it as a de facto standard. This means music could sound unbalanced and weird on other GM sound modules if they deviated too much from the “gold standard” SC-55 sound.

Additionally, the SC-55 also supports the General Standard (Roland GS, or only GS in short), which is Roland’s vendor-specific General MIDI extension. Many games make good use of these extra features and sound wrong in their absence. This means that alternative MIDI modules need to support both the GM and the GS standards to sound correct with DOS games.

The Yamaha DB50XG and MU-series (e.g., MU50, MU80, MU100, etc.) are such MIDI modules. They can be viewed as more modern-sounding and higher-quality takes on the original SC-55. They offer excellent SC-55 compatibility but with a more polished and punchy sonic character. In fact, many prefer them to the SC-55 in certain DOS games. If you are curious about how these Yamaha modules stack up against the SC-55, this article might be of interest.

Dynamic range compression

If a game has loud music and you set the output level of your soundcard too high, you’ll get rather unpleasant-sounding distortion and crackling on real hardware. DOSBox Staging has a dynamic range compressor on the master channel that automatically pulls the volume back on loud sounds to prevent such distortions.

You can test this by playing the game for a minute with the GeneralUser GS SoundFont. You might notice a slight “pumping” as the compressor pulls the volume back on loud sound effects; this dips the volume level of the background music as well.

To hear the distortion caused by the loud sounds clearly, disable the master compressor:

[mixer]
compressor = off

Overall, the compressor does a good job of preventing audible distortion up to a certain point, and most users should not think much about it; it just works. But if the master channel is overdriven heavily, the pumping artifacts would be rather distracting, so in that case, it’s better to lower the master volume with the mixer command (e.g., mixer master 50 to set the master volume to 50%). People who are after the best audio quality should also prefer lowering the master volume rather than relying on the compressor.

The sound output of Dark Forces is on the loud side, so we’ll set the output to 50% to make sure the compressor is never engaged:

[autoexec]
c:
mixer master 50
autotype -w 0.5 1
demo
exit

Reverse stereo

The sound setup utility asks us to confirm whether the left and right audio channels should be swapped when setting up digital audio. Weird as it may sound, some Sound Blaster models and clones had “reversed stereo” for some inexplicable reason. If people used any of these cards during the development of a game, the stereo image would be reversed on normal cards, and vice versa.

Irrespective of the exact reasons, the fact is that some games with stereo digital audio support have the left and right channels reversed. In affected games, the channels might be reversed on all Sound Blaster variants, or only on certain models.

In the case of Dark Forces, you don’t need to use the “reverse stereo” option when emulating a Sound Blaster 16 card (which is the default). However, when using the Sound Blaster Pro 1 model (sbtype = sbpro1), the stereo image needs to be reversed.

But what about games that don’t have such a handy “reverse stereo” option in their setup utility? For those games, you can simply reverse the left and right channels of the SB mixer channel with the mixer sb reverse command. This will only reverse the digital sound output of the Sound Blaster.

(Remember, you can use mixer /? or help mixer to view the mixer command’s help.)

Minimising audio glitches

Even after setting the optimal cycles value for the game to limit the emulated CPU speed, you might still hear occasional audio glitches. Why this can happen depends on a lot of factors, but it mainly comes down to the particular hardware, driver, and operating system combination you’re using.

As a last resort, you can try setting larger audio buffers sizes; this usually helps eliminate the occasional clicks and pops. The downside of this is that it will also increase audio latency, meaning that you’ll hear the audio in response to some action with a longer delay (e.g., when shooting with a gun).

The default blocksize value is 1024 on Windows and 512 on macOS and Linux. The default prebuffer size is 25 on Windows and 20 on the other platforms (this is specified in milliseconds). You can experiment with increasing these settings—doubling them is a good start. Generally, prebuffer can be anything but blocksize must be one of the following values: 256, 512, 1024, 2048, 4096, or 8192.

[mixer]
blocksize = 2048
prebuffer = 50

Final configuration

Here’s the full config of Dark Forces set up for General MIDI sound:

[sdl]
fullscreen = on

[cpu]
# to emulate a Pentium 90
cycles = 50000

[mixer]
compressor = off

[midi]
mididevice = fluidsynth

[fluidsynth]
# not needed if you set this in the primary config
soundfont = "GeneralUser GS v1.471.sf2"

[autoexec]
c:
mixer master 50
autotype -w 0.5 1
demo
exit
